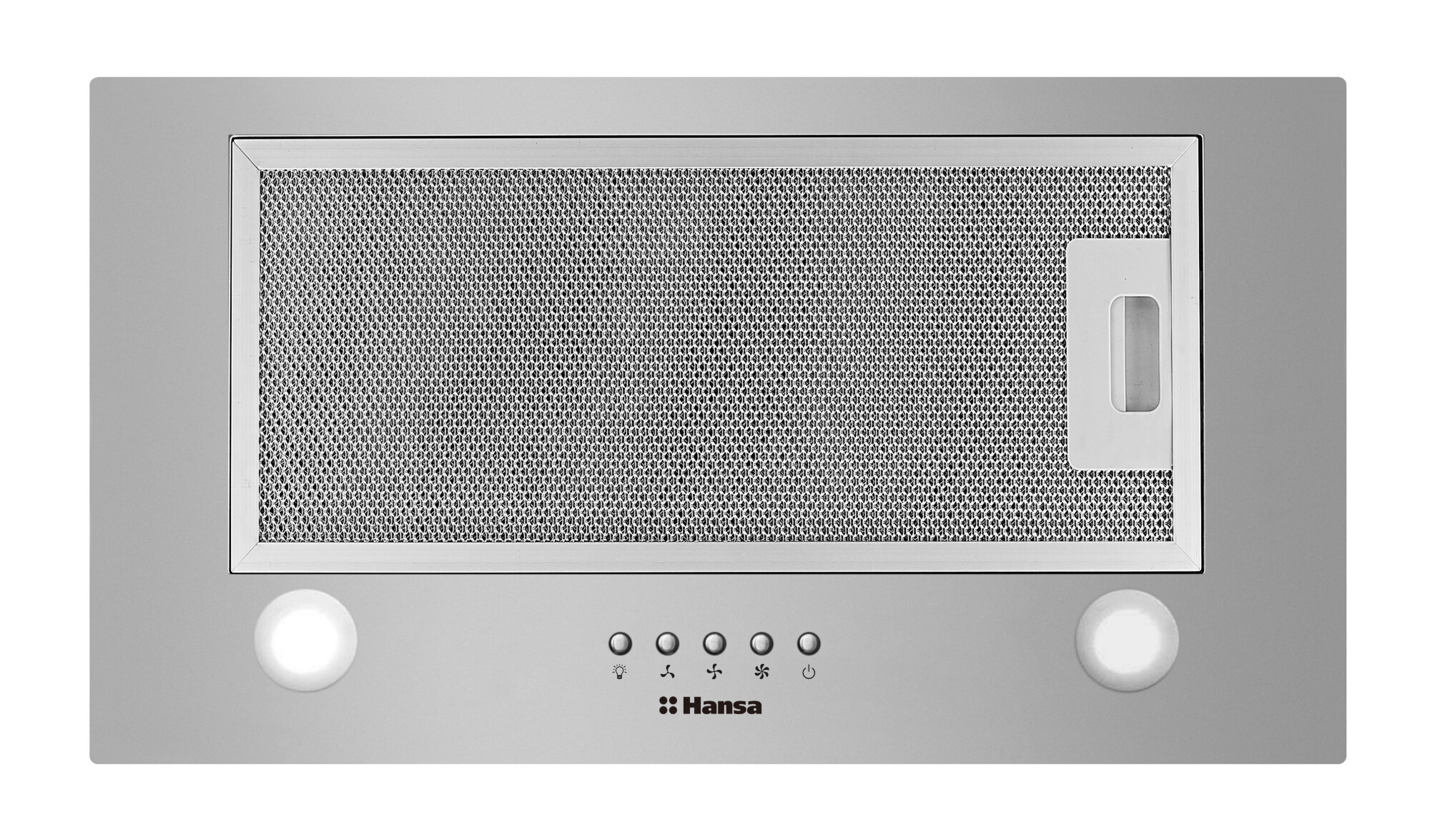

OMP6212SIH
-
Toode omadused
- Accessories -
- Air flaps Yes
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Type of work Extraction/Recirculation
-
Seade
- Number of carbon filters 2
- Number of grease filters 1
- Number of layers in grease filter 5
- Number of speed 3
- Type of control Push buttons
- Type of grease filters Aluminium frame
- Carbon filter type KF 17154
-
Tehnilised andmed
- Frequency 50
- Air flow at 1 speed - extractor by EN 61591 232 m3/h
- Air flow at 2 speed - extractor by EN 61591 550 m3/h
- Air flow at 3 speed - extractor by EN 61591 650 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 650 m3/h
- Air Flow at Minimum Speed in Normal Use 232 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 224 m3/h
- Air Pressure at Best Efficiency Point P BEP 182.6 Pa
- Aastane energiatarbimine 48.6 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 103 lux
- Container qty 40'HQ 1130
- Control panel on one side/two sides One side
- Country of Origin on Rating Label Made in PRC
- Dimensions of grease filter 176.5 x 398.8 mm
- Display color No
- Distance from light cover to wall 27 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 83.4 W
- Sujuv dünaamiline tõhusus 13.6
- Sujuv dünaamiline tõhusus D
- Grease Filtering Efficiency - GFE hood 68 %
- Rasva väljafiltreerimise tõhusus D
- Internal/external motor Internal
- Main lighting colour temperature [K] 2
- Valgustus 25.8 lux/W
- Valgustõhususe klass B
- Valgustus B
- Maximum Possible Air Flow 650 m3/h
- Motor unit rated power 120 W
- Motor type/model F series
- Net depth 286 mm
- Net height max 176 mm
- Net height min 176 mm
- Puhaskaal 4.2 kg
- Net width 518 mm
- Müratase 49 dB
- Müratase 60 dB
- Müratase 63 dB
- Nominal Power of the Lighting System - W L 4 W
- Number of motor units 1
- Number units of main lighting 2
- Õhuväljalaske läbimõõt 120 mm
- Type of plug or cable Euro plug
- Toitejuhtme pikkus 120 cm
- Power rating 124 W
- Power Supply Voltage 230V
- Power unit of main lighting 2 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 63 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 49 dB
- Müratase 63 dB
- Time Increase Factor - f 1.5
- Type of main lighting LED - other
