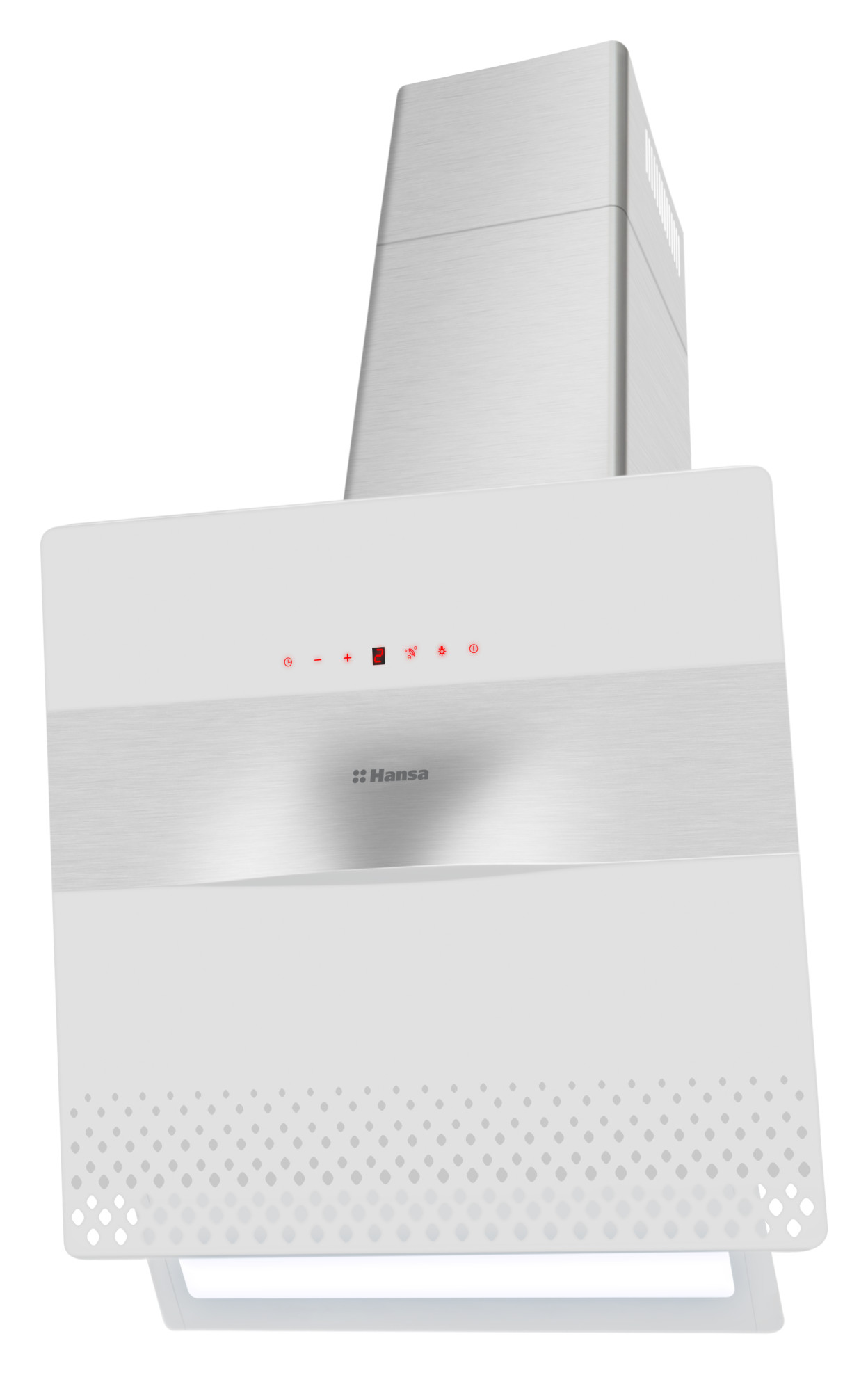

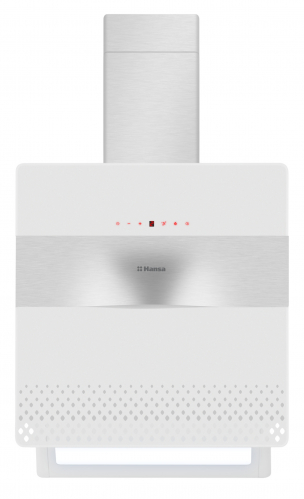

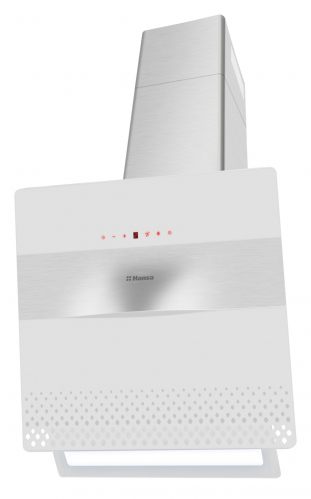

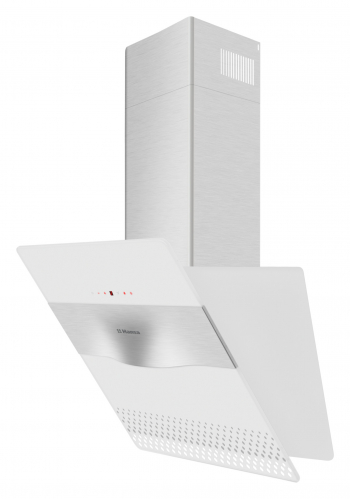

OKP6654IWSH

  • Toode omadused

    • Accessories pipe
    • Air flaps Yes
    • Delay Yes
    • FrameOn Yes
    • Maximum time of delay 15 '
    • Montage template Yes
    • Panel - language version Pictograms
    • Protection class of electric shock I_Class
    • Type of work Extraction/Recirculation
  • Seade

    • Number of carbon filters 2
    • Number of grease filters 1
    • Number of layers in grease filter 5
    • Number of speed 4
    • Type of control Sensor
    • Type of display LCD
    • Type of grease filters Aluminium frame
    • Carbon filter type FWP 18
  • Tehnilised andmed

    • Frequency 50
    • Air flow at 1 speed - extractor by EN 61591 406 m3/h
    • Air flow at 2 speed - extractor by EN 61591 486 m3/h
    • Air flow at 3 speed - extractor by EN 61591 642 m3/h
    • Air flow at 4 speed - extractor by EN 61591 728 m3/h
    • Air Flow at Intensive or Boost Setting [If Available] 728 m3/h
    • Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 642 m3/h
    • Air Flow at Minimum Speed in Normal Use 406 m3/h
    • Air Flow Rate at Best Efficiency Point - Q BEP 382.2 m3/h
    • Air Pressure at Best Efficiency Point P BEP 425.9 Pa
    • Aastane energiatarbimine 43.6 kWh
    • Average Illumination of the Lighting System on the Cooking Surface - E middle 123.6 lux
    • Container qty 40'HQ 292
    • Control panel on one side/two sides One side
    • Country of Origin on Rating Label Made in PRC
    • Dimensions of grease filter 297x262 mm
    • Display color Red
    • Distance from light cover to wall 36 mm
    • Distance to electric hob 450 mm
    • Distance to gas hob 650 mm
    • Electric Power Input at Best Efficiency Point - W BEP 138.2 W
    • Sujuv dünaamiline tõhusus 32.7
    • Sujuv dünaamiline tõhusus A
    • Grease Filtering Efficiency - GFE hood 57 %
    • Rasva väljafiltreerimise tõhusus E
    • Intensive or Boost Setting Auto-Off time 5 '
    • Internal/external motor Internal
    • Main lighting colour temperature [K] 6500
    • Valgustus 27.5 lux/W
    • Valgustõhususe klass B
    • Valgustus B
    • Limitation of Exhaust Air - t limit 8 '
    • Maximum Possible Air Flow 728 m3/h
    • Motor unit rated power 300 W
    • Motor type/model E
    • Net depth 490 mm
    • Net height max 1420 mm
    • Net height min 940 mm
    • Puhaskaal 18.9 kg
    • Net width 600 mm
    • Müratase 59 dB
    • Müratase 66 dB
    • Müratase 68 dB
    • Müratase 69 dB
    • Nominal Power of the Lighting System - W L 4.5 W
    • Number of motor units 1
    • Number units of main lighting 1
    • Õhuväljalaske läbimõõt 150 mm
    • Type of plug or cable Euro plug
    • Power Consumption in Standby Mode - Ps 0.55 W
    • Power Consumption in Off Mode - Po 0.48 W
    • Toitejuhtme pikkus 120 cm
    • Power rating 304 W
    • Power Supply Voltage 230V
    • Power unit of main lighting 4 W
    • Sound Power Emission at Intensive or Boost Setting [if available] 69 dB
    • Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 68 dB
    • Sound Power Emission at Minimum Speed Available in Normal Use 59 dB
    • Müratase 68 dB
    • Time Increase Factor - f 0.8
    • Type of main lighting LED panel
