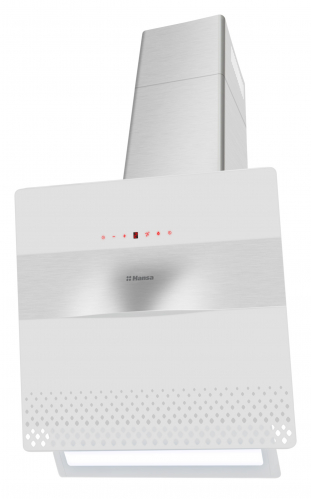

OKP6654IWSH
OKP6654IWSH
Tehnilised andmed
Toode omadused
| Accessories pipe | Air flaps Yes | Delay Yes |
| FrameOn Yes | Maximum time of delay 15 ' | Montage template Yes |
| Panel - language version Pictograms | Protection class of electric shock I_Class | Type of work Extraction/Recirculation |
Seade
| Number of carbon filters 2 | Number of grease filters 1 | Number of layers in grease filter 5 |
| Number of speed 4 | Type of control Sensor | Type of display LCD |
| Type of grease filters Aluminium frame | Carbon filter type FWP 18 |
Tehnilised andmed
| Frequency 50 | Air flow at 1 speed - extractor by EN 61591 406 m3/h | Air flow at 2 speed - extractor by EN 61591 486 m3/h | |||||||||||||||||||||||||||||||||||||
| Air flow at 3 speed - extractor by EN 61591 642 m3/h | Air flow at 4 speed - extractor by EN 61591 728 m3/h | Air Flow at Intensive or Boost Setting [If Available] 728 m3/h | |||||||||||||||||||||||||||||||||||||
| Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 642 m3/h | Air Flow at Minimum Speed in Normal Use 406 m3/h | Air Flow Rate at Best Efficiency Point - Q BEP 382.2 m3/h | |||||||||||||||||||||||||||||||||||||
| Air Pressure at Best Efficiency Point P BEP 425.9 Pa | Aastane energiatarbimine 43.6 kWh | Average Illumination of the Lighting System on the Cooking Surface - E middle 123.6 lux | |||||||||||||||||||||||||||||||||||||
| Container qty 40'HQ 292 | Control panel on one side/two sides One side | Country of Origin on Rating Label Made in PRC | |||||||||||||||||||||||||||||||||||||
| Dimensions of grease filter 297x262 mm | Display color Red | Distance from light cover to wall 36 mm | |||||||||||||||||||||||||||||||||||||
| Distance to electric hob 450 mm | Distance to gas hob 650 mm | Electric Power Input at Best Efficiency Point - W BEP 138.2 W | |||||||||||||||||||||||||||||||||||||
| Sujuv dünaamiline tõhusus 32.7 | Sujuv dünaamiline tõhusus A | Grease Filtering Efficiency - GFE hood 57 % | Rasva väljafiltreerimise tõhusus E | Intensive or Boost Setting Auto-Off time 5 ' | Internal/external motor Internal | Main lighting colour temperature [K] 6500 | Valgustus 27.5 lux/W | Valgustõhususe klass B | Valgustus B | Limitation of Exhaust Air - t limit 8 ' | Maximum Possible Air Flow 728 m3/h | Motor unit rated power 300 W | Motor type/model E | Net depth 490 mm | Net height max 1420 mm | Net height min 940 mm | Puhaskaal 18.9 kg | Net width 600 mm | Müratase 59 dB | Müratase 66 dB | Müratase 68 dB | Müratase 69 dB | Nominal Power of the Lighting System - W L 4.5 W | Number of motor units 1 | Number units of main lighting 1 | Õhuväljalaske läbimõõt 150 mm | Type of plug or cable Euro plug | Power Consumption in Standby Mode - Ps 0.55 W | Power Consumption in Off Mode - Po 0.48 W | Toitejuhtme pikkus 120 cm | Power rating 304 W | Power Supply Voltage 230V | Power unit of main lighting 4 W | Sound Power Emission at Intensive or Boost Setting [if available] 69 dB | Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 68 dB | Sound Power Emission at Minimum Speed Available in Normal Use 59 dB | Müratase 68 dB | Time Increase Factor - f 0.8 | Type of main lighting LED panel |
