Въглероден филтър
Чиста и ефективна екстракция на въздуха благодарение на интегрираните въглеродни филтри. (* въглеродният филтър се продава отделно).
-
Осветление: халогенно
Нашите абсорбатори са оборудвани с халогенно осветление. Във всички модели включването на осветлението е независимо от действието на абсорбатора. Резултатът е удобство за потребителя.
i
Toote kirjelduses toodud graafiline materjal, näiteks pildid ja videod, näitavad, kuidas teatud funktsioonid töötavad ning ei pruugi esindada seda kindlat mudelit.

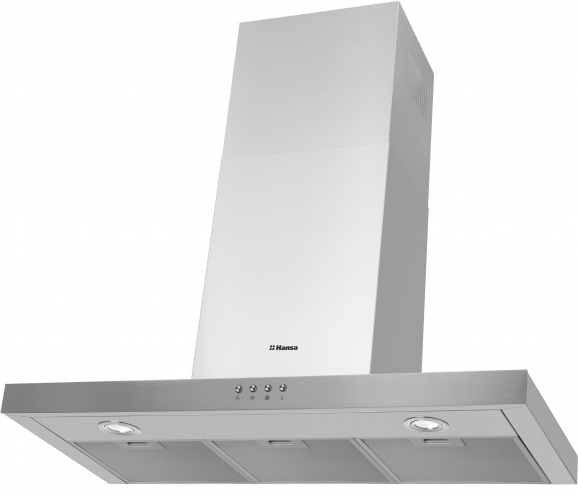

OKP931TH
-
Toode omadused
- Accessories Pipe
- Air flaps Yes
- Montage template Yes
- Panel - language version Pictograms
- Protection class of electric shock I_Class
- Type of work Extraction/Recirculation
-
Seade
- Number of carbon filters 1
- Number of grease filters 3
- Number of layers in grease filter 5
- Number of speed 3
- Type of control Soft touch
- Type of grease filters Aluminium frame
- Carbon filter type FWP 03
-
Tehnilised andmed
- Air flow at 1 speed - extractor by EN 61591 430 m3/h
- Air flow at 2 speed - extractor by EN 61591 540 m3/h
- Air flow at 3 speed - extractor by EN 61591 642 m3/h
- Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 642 m3/h
- Air Flow at Minimum Speed in Normal Use 430 m3/h
- Air Flow Rate at Best Efficiency Point - Q BEP 396 m3/h
- Air Pressure at Best Efficiency Point P BEP 340.5 Pa
- Aastane energiatarbimine 78 kWh
- Average Illumination of the Lighting System on the Cooking Surface - E middle 87 lux
- Container qty 40'HQ 334
- Control panel on one side/two sides One side
- Country of Origin on Rating Label Made in PRC
- Dimensions of grease filter 278,5 x 211 mm
- Display color Red
- Distance from light cover to wall 385 mm
- Distance to electric hob 450 mm
- Distance to gas hob 650 mm
- Electric Power Input at Best Efficiency Point - W BEP 173.1 W
- Sujuv dünaamiline tõhusus 21.6
- Sujuv dünaamiline tõhusus C
- Grease Filtering Efficiency - GFE hood 82.7 %
- Rasva väljafiltreerimise tõhusus C
- Internal/external motor Internal
- Main lighting colour temperature [K] 6500
- Valgustus 29 lux/W
- Valgustõhususe klass A
- Valgustus A
- Maximum Possible Air Flow 642 m3/h
- Motor unit rated power 230 W
- Motor type/model E series
- Net depth 500 mm
- Net height max 915 mm
- Net height min 535 mm
- Puhaskaal 13.3 kg
- Net width 900 mm
- Müratase 57 dB
- Müratase 63 dB
- Müratase 68 dB
- Nominal Power of the Lighting System - W L 3 W
- Number of motor units 1
- Number units of main lighting 2
- Õhuväljalaske läbimõõt 150 mm
- Type of plug or cable Euro plug
- Power Consumption in Off Mode - Po 0.34 W
- Toitejuhtme pikkus 120 cm
- Power rating 234 W
- Power Supply Voltage 230V
- Power unit of main lighting 2 W
- Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 68 dB
- Sound Power Emission at Minimum Speed Available in Normal Use 57 dB
- Müratase 68 dB
- Time Increase Factor - f 1.2
- Type of main lighting LED - other
