Toote kirjelduses toodud graafiline materjal, näiteks pildid ja videod, näitavad, kuidas teatud funktsioonid töötavad ning ei pruugi esindada seda kindlat mudelit.

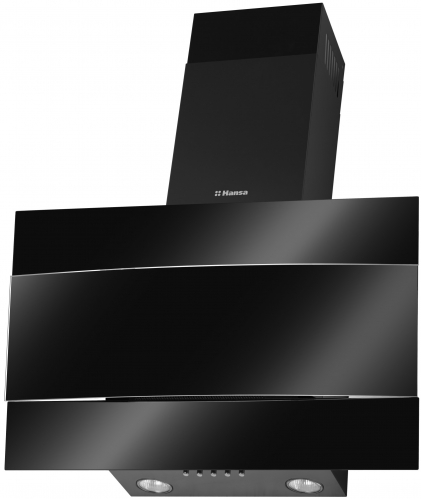

OKC624SH

  • Toode omadused

    • Accessories -
    • Air flaps Yes
    • FrameOn Yes
    • Panel - language version Pictograms
    • Protection class of electric shock I_Class
    • Type of work Extraction/Recirculation
  • Seade

    • Number of carbon filters 2
    • Number of grease filters 1
    • Number of layers in grease filter 3
    • Number of speed 3
    • Type of control Push buttons
    • Type of grease filters Aluminium frame
    • Carbon filter type FWK 145
  • Tehnilised andmed

    • Air flow at 1 speed - extractor by EN 61591 125 m3/h
    • Air flow at 2 speed - extractor by EN 61591 157 m3/h
    • Air flow at 3 speed - extractor by EN 61591 280 m3/h
    • Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 280 m3/h
    • Air Flow at Minimum Speed in Normal Use 125 m3/h
    • Air Flow Rate at Best Efficiency Point - Q BEP 154.3 m3/h
    • Air Pressure at Best Efficiency Point P BEP 221 Pa
    • Aastane energiatarbimine 60.2 kWh
    • Average Illumination of the Lighting System on the Cooking Surface - E middle 257 lux
    • Control panel on one side/two sides One side
    • Country of Origin on Rating Label Made in EU
    • Dimensions of grease filter 222.5 x 250 x 9 mm
    • Display color No
    • Distance from light cover to wall 20 mm
    • Distance to electric hob 450 mm
    • Distance to gas hob 650 mm
    • Electric Power Input at Best Efficiency Point - W BEP 95.5 W
    • Sujuv dünaamiline tõhusus 9.9
    • Sujuv dünaamiline tõhusus E
    • Grease Filtering Efficiency - GFE hood 61.9 %
    • Rasva väljafiltreerimise tõhusus E
    • Internal/external motor Internal
    • Valgustus 42.8 lux/W
    • Valgustõhususe klass A
    • Valgustus A
    • Maximum Possible Air Flow 280 m3/h
    • Motor unit rated power 115 W
    • Motor type/model K-28 030 00 HE (obud. MT)
    • Net depth 350 mm
    • Net height max 1330 mm
    • Net height min 960 mm
    • Puhaskaal 10 kg
    • Net width 600 mm
    • Müratase 47 dB
    • Müratase 52 dB
    • Müratase 63 dB
    • Nominal Power of the Lighting System - W L 6 W
    • Number of motor units 1
    • Number units of main lighting 2
    • Õhuväljalaske läbimõõt 150 mm
    • Type of plug or cable Euro plug
    • Toitejuhtme pikkus 145 cm
    • Power rating 121 W
    • Power Supply Voltage 230V
    • Power unit of main lighting 3 W
    • Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 63 dB
    • Sound Power Emission at Minimum Speed Available in Normal Use 47 dB
    • Müratase 63 dB
    • Time Increase Factor - f 1.6
    • Type of main lighting LED
