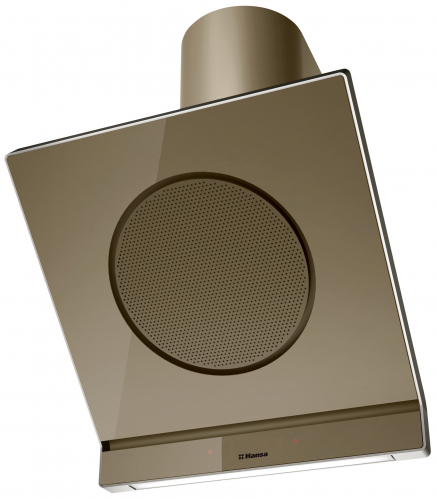

OKC 600 UMH

OKC 600 UMH

OKC 600 UMH OKC 600 UMH

Tehnilised andmed

Toode omadused

Accessories - Air flaps Yes Delay Yes
FrameOn Yes Maximum time of delay 10 ' Panel - language version Pictograms
Protection class of electric shock I_Class Type of work Extraction/Recirculation

Seade

Number of carbon filters 1 Number of grease filters 1 Number of layers in grease filter 5
Number of speed 4 Type of control Sensor Type of grease filters Aluminium frame
Carbon filter type FWK 300

Tehnilised andmed

Air flow at 1 speed - extractor by EN 61591 260 m3/h Air flow at 2 speed - extractor by EN 61591 350 m3/h Air flow at 3 speed - extractor by EN 61591 438 m3/h
Air flow at 4 speed - extractor by EN 61591 700 m3/h Air Flow at Intensive or Boost Setting [If Available] 700 m3/h Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 438 m3/h
Air Flow at Minimum Speed in Normal Use 260 m3/h Air Flow Rate at Best Efficiency Point - Q BEP 434.8 m3/h Air Pressure at Best Efficiency Point P BEP 412 Pa
Aastane energiatarbimine 62.9 kWh Average Illumination of the Lighting System on the Cooking Surface - E middle 232 lux Control panel on one side/two sides One side
Country of Origin on Rating Label Made in Poland Dimensions of grease filter 320 x 300 Display color Red
Distance from light cover to wall 5 mm Distance to electric hob 450 mm Distance to gas hob 650 mm
Electric Power Input at Best Efficiency Point - W BEP 166.5 W Sujuv dünaamiline tõhusus 29.9 Sujuv dünaamiline tõhusus A
Grease Filtering Efficiency - GFE hood 71.9 % Rasva väljafiltreerimise tõhusus D Intensive or Boost Setting Auto-Off time 5 ' Internal/external motor Internal Valgustus 25.2 lux/W Valgustõhususe klass B Valgustus B Limitation of Exhaust Air - t limit 9 ' Maximum Possible Air Flow 700 m3/h Motor unit rated power 260 W Motor type/model S-45 Net depth 455 mm Net height max 1435 mm Net height min 1080 mm Puhaskaal 21.46 kg Net width 600 mm Müratase 50 dB Müratase 55 dB Müratase 60 dB Müratase 69 dB Nominal Power of the Lighting System - W L 9.2 W Number of motor units 1 Number units of main lighting 1 Õhuväljalaske läbimõõt 150 mm Type of plug or cable Euro plug Power Consumption in Standby Mode - Ps 0.25 W Toitejuhtme pikkus 170 cm Power rating 268.2 W Power Supply Voltage 230V Power unit of main lighting 8.2 W Sound Power Emission at Intensive or Boost Setting [if available] 69 dB Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 60 dB Sound Power Emission at Minimum Speed Available in Normal Use 50 dB Müratase 60 dB Time Increase Factor - f 0.9 Type of main lighting LED
